Anti-reflection Glass

Anti-reflection glass(AR glass), by using a specific optical coating film on the glass surface, effectively reduces reflections and increases light transmittance through the interference principle of light. It has brought significant performance improvements and enhanced experiences in various fields.

Products	AR Glass
Glass Material	Soda-lime Glass,Aluminosilicote Glass,Low lron Glass,Borosilicote Glass
Size	Customizable Size (10.1-110]
Thickness	0.5-6 mm
Tempered	Physical Tempering,Chemical Tempering
Edge Treatment	CNC Grinding, Polishing, Chamfering
Hole	Round,Square (irregular holes available]
Color	Black,White,Silver (up to 7 layers of color]
Printing Method	Ordinory Screen Printing,High Temperature Screen Printing
Coating	Anti-reflection
Production Process	Coating-Cutting-Edging--Cleaning-Tempered-Printing -Cleaning-Coating-Inspection-Packaging
Packaging	Protective Film and Safety Packaging

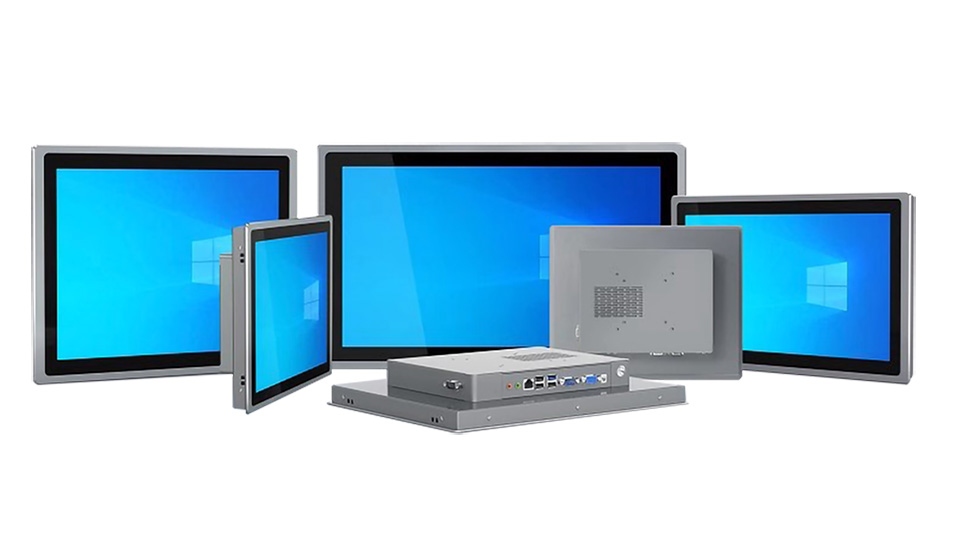

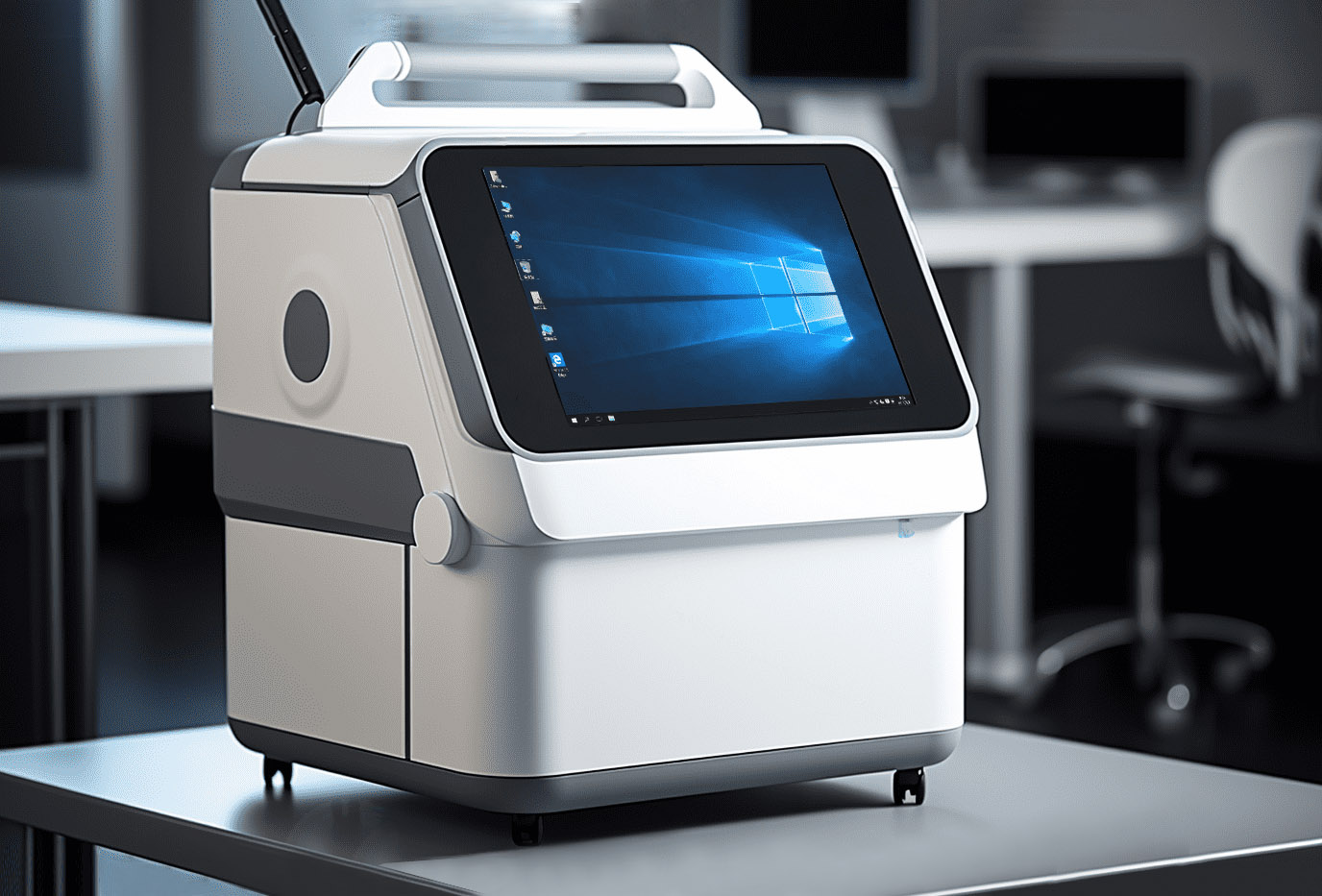

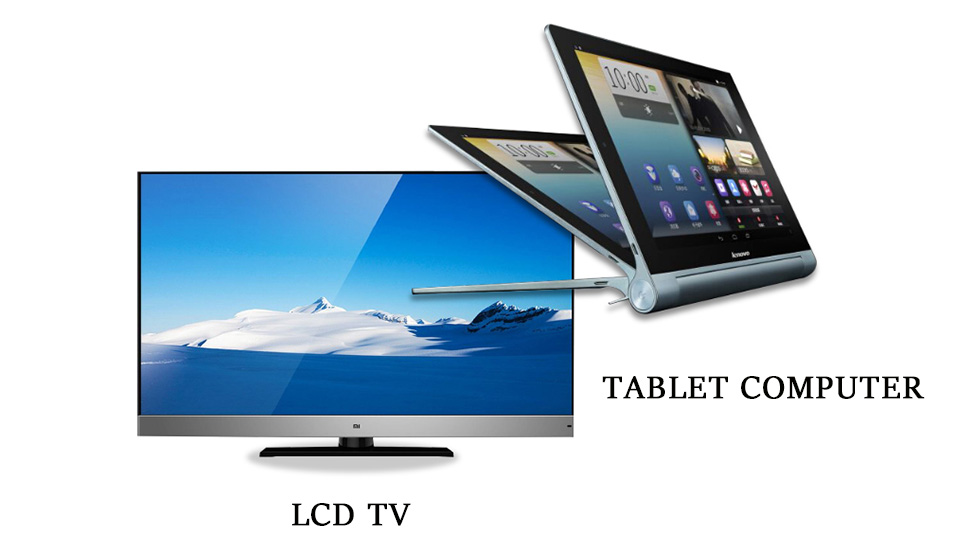

Usage	Electronic Display Field, Transportation Field, Medical Equipment Field, Education and Exhibition Field.Industrial Control Field.

Customization Processfuxin

Each product strictly complies with quality standards, process-based operations, and stable quality

Proofing

Make screen cover according to drawings or samples
Sample Check

Send to customer for confirmation, adjust processing details
Mass Production

Production according to the signed contract specs & quantity
Inspection

Full-process inspection around the production and finish product
Pack & Ship

Pack and deliver to the customer's designated place
After-sales

24-hour order follow-up and after-sales service support

Inquiry & Order

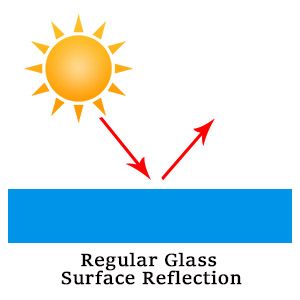

Ordinary glass has a reflectivity of about 8%, and under strong light, it is prone to glare. Ordinary glass is easy to break and susceptible to corrosion, mainly used in general scenarios.

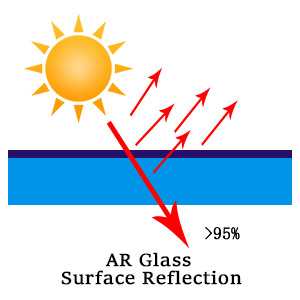

AR glass can reduce reflectivity to below 1%, resulting in a clearer image; AR glass has higher hardness and impact resistance, and is applied in fields with high optical performance requirements, such as medical equipment and high-end electronic displays.

AR Glass Optical Parameters

	Normal Glass	Single-sided 2-layer AR	Single-sided 4-layer AR	Double-sided 4-layer AR
Color	transparent	blue-purple	Natural color	Natural color
Optical curves	/	V	W	W
Transmission rate	≤90%	≥92%	≥94.5%	≥98%
Reflectivity	≥8.4%	≤5.5%	≤4.8%	≤ 1%
Application	Low end products	Mid-range display panel	Premium display panel	Premium display panel
Scratch resistance	≥8H
abrasion resistance	Rubber, 250G pressure, 200 cycles, no change in the membrane.
Moisture resistance	120° ± 4° Fahrenheit, 24 hours
High temperature resistance	Bake at 650°C for 5 minutes; the membrane shows no change.
soluble	No change was observed in the membrane at a concentration of 50 g/L NaCl and a temperature of 35°C.
Acid resistance	At a concentration of 10% HCl, at room temperature, for 24 hours, no change was observed in the membrane.
Salt resistance	10% NaOH concentration, 60°C, 5 minutes, transmittance change \|ΔT\| ≤ 4%
